Carbon Fiber Winding Ring: High-Strength Composite Ring for Electrical and Industrial Applications
A Carbon Fiber Winding Ring is a high-strength composite ring manufactured from carbon fiber and resin-based materials. It is designed for applications that require a combination of high mechanical strength, lightweight construction, dimensional stability, and reliable performance under demanding operating conditions.
Carbon fiber winding rings are commonly used as structural or reinforcement components in electrical equipment, rotating machinery, generators, motors, and other industrial applications where conventional metal rings may not provide the required combination of weight, strength, and performance.
What Is a Carbon Fiber Winding Ring?
A Carbon Fiber Winding Ring is a circular composite component produced using controlled carbon fiber winding and resin processing.
During manufacturing, continuous carbon fibers are wound around a precisely defined shape or mandrel. The fiber orientation can be controlled according to the required mechanical properties and application.
This manufacturing method allows the winding ring to achieve a high strength-to-weight ratio while maintaining the dimensional accuracy required for industrial equipment.
Depending on the application, Carbon Fiber Winding Rings can be customized in terms of:
- Inner diameter
- Outer diameter
- Ring thickness
- Width
- Fiber orientation
- Resin system
- Dimensional tolerances
- Surface finish
- Mechanical performance
Why Use Carbon Fiber for Winding Rings?
Carbon fiber offers several advantages for applications where weight, strength, and structural stability are important.
High Strength-to-Weight Ratio
Carbon fiber composites can provide high mechanical strength without the weight associated with many traditional metal materials.
This makes Carbon Fiber Winding Rings suitable for equipment where reducing component weight is beneficial.
Excellent Dimensional Stability
Properly designed carbon fiber composite rings can maintain their dimensions under demanding operating conditions, helping support stable equipment performance.
High Tensile Strength
Continuous carbon fibers provide excellent tensile properties along the fiber direction. By controlling the winding angle and fiber orientation, the ring can be engineered for specific load requirements.
Low Weight
The lightweight characteristics of carbon fiber composites can help reduce the mass of rotating or structural components.
Corrosion Resistance
Unlike many metallic materials, carbon fiber composite materials do not rust. This can be advantageous in applications exposed to moisture or demanding environmental conditions.
Where Are Carbon Fiber Winding Rings Used?
Carbon Fiber Winding Rings are used in a variety of industrial and electrical applications.
Typical applications include:
- Electric generators
- Wind turbine generators
- High-speed motors
- Rotating electrical equipment
- Industrial machinery
- Composite reinforcement structures
- Electrical insulation systems
- High-performance mechanical assemblies
The specific design of the winding ring depends on the mechanical load, operating speed, temperature, installation structure, and other requirements of the equipment.
Carbon Fiber Winding Ring for Generator Applications
Generator applications often require components that can withstand continuous mechanical loads and demanding operating conditions.
A Carbon Fiber Winding Ring can be designed as a high-strength composite component for generator structures where low weight, high tensile strength, and dimensional stability are important.
For high-speed rotating equipment, the winding pattern and fiber orientation are particularly important because the composite ring needs to withstand the forces generated during operation.
For this reason, the ring should be engineered according to the actual generator design rather than selected solely by its external dimensions.
How Is a Carbon Fiber Winding Ring Manufactured?
The manufacturing process generally involves several important stages:
1. Material Selection
Carbon fiber and an appropriate resin system are selected according to the required mechanical and environmental performance.
2. Fiber Winding
Continuous carbon fiber is wound onto a mandrel according to a controlled winding pattern.
3. Resin Processing
The composite material is consolidated and cured under controlled processing conditions.
4. Precision Machining
After curing, the ring can be machined to achieve the required dimensions and tolerances.
5. Quality Inspection
The finished component is inspected for dimensional accuracy, surface quality, and other customer-specified requirements.
The exact manufacturing process may vary according to the ring’s size, material system, application, and performance requirements.
Can Carbon Fiber Winding Rings Be Customized?
Yes. Custom Carbon Fiber Winding Rings can be manufactured according to engineering drawings, samples, or application specifications.
For OEM applications, customers can provide information such as:
- Technical drawings
- 3D CAD files
- Required dimensions
- Operating temperature
- Rotational speed
- Mechanical loads
- Material requirements
- Quantity requirements
- Application environment
Based on these requirements, the manufacturer can determine the appropriate carbon fiber material, winding structure, resin system, and machining process.

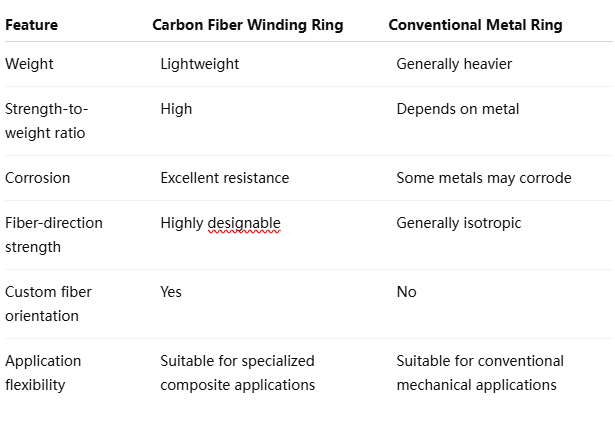

Carbon Fiber Winding Ring vs. Metal Ring
The choice between carbon fiber and metal depends on the application.
Carbon fiber is particularly attractive when weight reduction, high tensile performance, and customized fiber orientation are important design requirements.
How to Choose the Right Carbon Fiber Winding Ring?
Before selecting a Carbon Fiber Winding Ring, engineers should evaluate several factors:
Dimensions: Inner diameter, outer diameter, width, thickness, and tolerances must match the installation requirements.
Mechanical Load: The expected tensile, radial, and other mechanical loads should be considered.
Operating Speed: High-speed applications require careful consideration of the ring’s structural design and manufacturing quality.
Temperature: The resin system should be suitable for the expected operating temperature.
Fiber Orientation: The winding angle and fiber arrangement should correspond to the primary load direction.
Application Environment: Moisture, chemicals, vibration, and other environmental factors may affect material selection.
Frequently Asked Questions About Carbon Fiber Winding Rings
What is a Carbon Fiber Winding Ring used for?
It is a high-strength composite ring used in electrical, mechanical, generator, motor, and other industrial applications where lightweight construction and high mechanical performance are required.
Are Carbon Fiber Winding Rings suitable for high-speed applications?
They can be designed for high-speed applications, but the material system, fiber orientation, dimensions, manufacturing process, and operating conditions must be properly evaluated for the specific application.
Can the winding ring be manufactured according to a drawing?
Yes. Custom production can be based on 2D drawings, 3D CAD models, samples, dimensions, and technical specifications.
What materials are used to manufacture Carbon Fiber Winding Rings?
Carbon fiber is combined with a suitable resin matrix to form the composite structure. The specific carbon fiber grade and resin system depend on the required mechanical, thermal, and environmental performance.
What information is needed for a custom Carbon Fiber Winding Ring?
The most useful information includes the ring dimensions, drawing or CAD file, operating speed, mechanical load, temperature, application environment, and required quantity.
Custom Carbon Fiber Winding Ring Manufacturer
A properly engineered Carbon Fiber Winding Ring can provide a valuable combination of lightweight construction, high strength, dimensional stability, and customized mechanical performance.
For generator, motor, wind power, and other industrial applications, custom manufacturing allows the ring structure and material system to be matched to the actual operating conditions.
If you are looking for a custom Carbon Fiber Winding Ring, provide your drawing, sample, dimensions, or application requirements. We can evaluate the material, winding structure, machining requirements, and production solution for your specific application.
