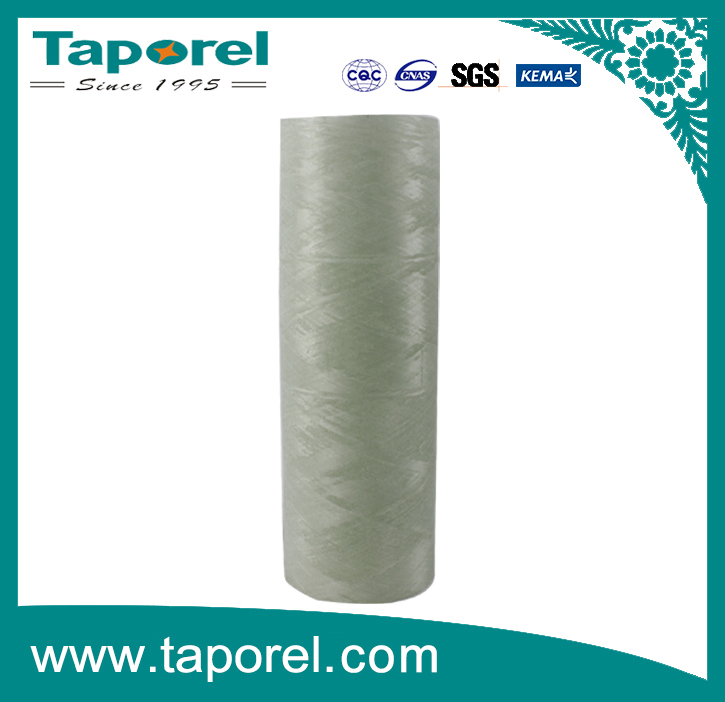

Epoxy Fiberglass Filament Wound Tube

Category:
Description

Taporel Wound Tubes can be classified by material into fiberglass yarn-wound tubes and fiberglass cloth-wound tubes. We offer a wide range of fiberglass yarn-wound tubes with inner diameters up to 1000 mm and lengths up to 10 meters. The winding angle can be controlled between 30° and 90°, and the tubes can be treated for SF₆ compatibility upon request. Various secondary processing services are available, including drilling, slotting, and internal or external thread machining. We also provide aluminum alloy flange assembly services for customers. Our products serve as insulating tubes for hollow insulators, surge arresters, high-voltage switchgear, instrument transformers, power transformers, and more.

1. Features of Taipurai Insulating Tubes:
(1) High density and high mechanical strength.
(2) Inner and outer surfaces can be specially treated according to customer requirements.
(3) High thread strength.

2. Product Specifications

NO. Code d=mm  D=mm  L=mm
1 TWPF20*D*L Ф20 According to the

customer’s requirements

 1050
2 TWPF23*D*L Ф23 1150
3 TWPF24*D*L Ф24 1300
4 TWPF26*D*L Ф26 2200
5 TWPF30*D*L Ф30 1200+1200、1600*3
6 TWPF32*D*L Ф32 1350
7 TWPF36*D*L Ф36 1200*2、1600*2
8 TWPF38*D*L Ф38 2200
9 TWPF40*D*L Ф40 1900
10 TWPF43.1*D*L Ф43.1 1600
11 TWPF43.5*D*L Ф43.5 3550、1600
12 TWPF45*D*L Φ45 1600
13 TWPF47*D*L Ф47 1600
14 TWPF47.5*D*L Ф47.5 1600、1700、2800、3300、3400
15 TWPF48*D*L Ф48 1100、1600*5
16 TWPF50*D*L Ф50 1300
17 TWPF54*D*L Φ54 3000
18 TWPF55*D*L Ф55 1700
19 TWPF56*D*L Ф56 2800
20 TWPF57*D*L Ф57 1300*2、1600*3
21 TWPF57.5*D*L Φ57.5 1600
22 TWPF60*D*L Ф60 1400
23 TWPF63*D*L Ф63 1400
24 TWPF64*D*L Ф64 1550*3、2850、1600*2
25 TWPF65*D*L Ф65 1600
26 TWPF66*D*L Φ66 1600
27 TWPF68*D*L Ф68 3150
28 TWPF70*D*L Ф70 1400、1600*3
29 TWPF73*D*L Ф73 1650
30 TWPF76*D*L Φ76 1600
31 TWPF77*D*L Φ77 1600
32 TWPF80*D*L Ф80 1700
33 TWPF83*D*L Ф83 1400、2400*2、2800*2
34 TWPF90*D*L Ф90 1450
35 TWPF92*D*L Ф92 1500*5、2700*1
36 TWPF100*D*L Ф100 1700
37 TWPF102*D*L Ф102 1300*4、1600*5
38 TWPF110*D*L Φ110 1600
39 TWPF112*D*L Φ112 1600
40 TWPF130*D*L Ф130 1450、1700
41 TWPF131.7*D*L Ф131.7 1500*3、1600*3
42 TWPF140*D*L Ф140 1100、1650
43 TWPF146*D*L Ф146 3850
44 TWPF160*D*L Ф160 1300
45 TWPF198*D*L Ф198 1500*4、1900
46 TWPF210*D*L Ф210 1900
47 TWPF230*D*L Ф230 500
48 TWPF240*D*L Ф240 1600
49 TWPF248*D*L Ф248 1900
50 TWPF260*D*L Ф260 1900
51 TWPF268*D*L Ф268 1600
52 TWPF270*D*L Ф270 1300
53 TWPF290*D*L Ф290 1700
54 TWPF300*D*L Ф300 2000
55 TWPF310*D*L Ф310 1300
56 TWPF320*D*L Ф320 1700
57 TWPF340*D*L Ф340 2200
58 TWPF350*D*L Ф350 1650
59 TWPF360*D*L Ф360 1700
60 TWPF370*D*L Ф370 1700
61 TWPF380*D*L Ф380 1500
62 TWPF390*D*L Ф390 1700
63 TWPF410*D*L Ф410 1700
64 TWPF520*D*L Ф520 1600
1.T — Taporel; WP — Wrapped Tube; F — Fiberglass; D — Outer Diameter; L — Length
2.The above dimensions correspond to our existing moulds. Items without available moulds can be customized per customer requirements. To shorten lead time and save mould opening costs, please design products as close to our existing mould dimensions as possible.
3.Length can be customized as requested; please refer to the mould lengths listed in the table above.
4.Please specify specifications and models when placing orders. Drawings or technical requirements shall be provided.

3.Technical parameters

No. Item Description Unit Index
1 Density g/cm³ ≥1.92
2 Flexural Strength MPa ≥320
3 Compressive Strength MPa ≥200
4 Shear Strength MPa ≥32
5 Dissipation Factor — ≤0.02
6 Dielectric Constant — 3–6
7 Volume Resistivity Normal Condition

After Water Immersion

 Ω·m ≥1.0×10¹¹

≥1.0×10⁹
8 Parallel-Layer Insulation Resistance Normal Condition

After Water Immersion

 Ω ≥1.0×10¹¹

≥1.0×10⁹
9 Surface Withstand Voltage (Withstand 1 min in air, gap 30 mm) kV 14
10 Perpendicular-Layer Withstand Voltage, δ ≤3 mm (Withstand 5 min in transformer oil at 90±2℃) kV 18 / 20
11 Parallel-Layer Withstand Voltage (Withstand 5 min in transformer oil at 90±2℃, gap 25 mm) kV ≥25 / ≥50 / ≥75
12 Insulation Resistance MΩ ≥5×10⁴
13 Power Frequency Withstand Voltage, Distance to Ground for On-Load Tap-Changer Oil Chamber (Withstand 5 min in transformer oil, distance 100 mm); Phase-to-Phase Distance (Subject to Customer’s Technical Requirements) kV ≥85

4. Product Applications
(1) High-Voltage Power Transmission & Distribution Equipment
Main insulating housing tubes for high-voltage current-limiting fuses, housing fuse elements and quartz sand arc-extinguishing media;
Internal insulating supports and separating tubes for windings of dry-type transformers and series reactors;
Insulating separation components inside the cavities of instrument transformers and high-voltage switches.
(2) New Energy Electrical Equipment
Insulating tubes for high-voltage fuses supporting photovoltaic and wind power box-type transformers;
Insulating pressure-bearing tubes for high-voltage circuits of power conversion systems (PCS) in energy storage.
(3) Special Industrial Electrical Equipment
Insulating pressure-bearing cavities for high-voltage test equipment;
Indoor high-voltage electrical insulation protection tubes for metallurgical and chemical industries.
